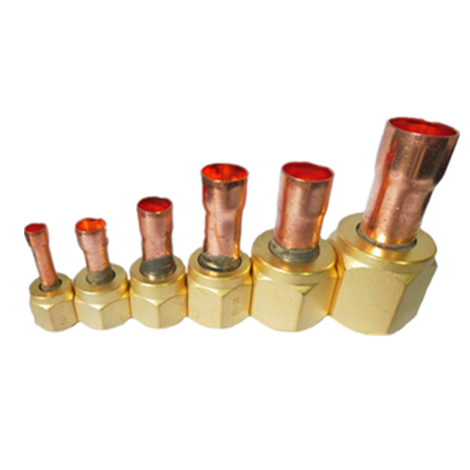

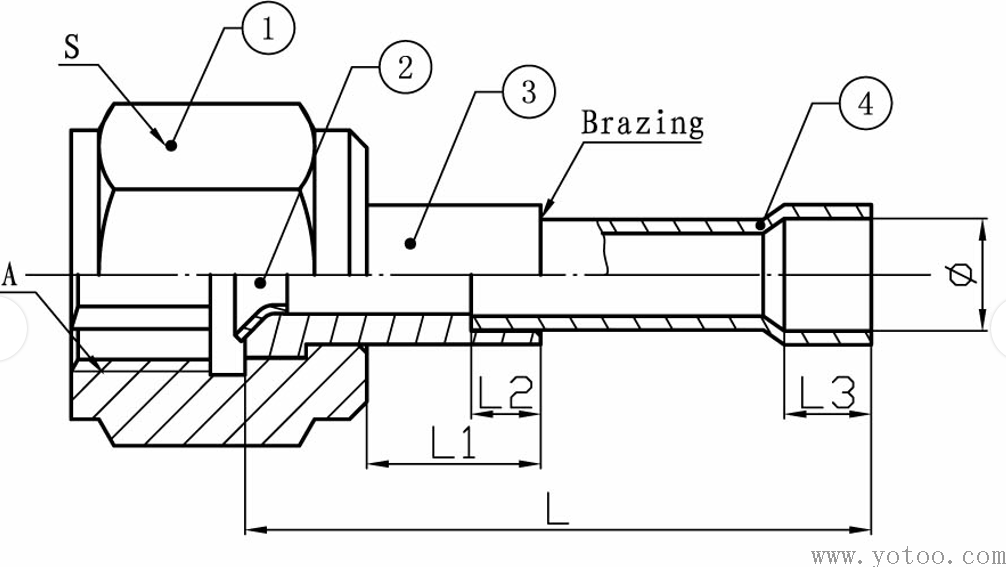

STANDARD STAINLESS STEEL JOINT

序号

No.

型号

Type

产品包含及描述Description

铜管接口

Copper Interface

总长

Length(mm)

S

2

螺纹规格

Thread Specification

耐压

Withstand Voltage

标准适用冷媒

Refrigerant

1

FA-2

6.35

45

S17

1/4

7/16"-20UNF

3.0MPa

R410a.R134a.R407C.R404a

2

FA-3

9.52

45

S22

3/8

5/8"-18UNF

R410a.R134a.R407C.R404a

3

FA-4

12.7

54

S24

1/2

3/4"-16UNF

R410a.R134a.R407C.R404a

4

FA-5

15.88

68

S27

5/8

7/8"-14UNF

R410a.R134a.R407C.R404a

5

FA-6

19.05

68

S36

3/4

1-1/16"-14UNF

R410a.R134a.R407C.R404a

6

FA-7

22.3

87

S41

7/8

1-1/4"-12UNF

R410a.R134a.R407C.R404a

7

FA-2M

6

45

S17

1/4

7/16"-20UNF

R410a.R134a.R407C.R404a

8

FA-3M

10

45

S22

3/8

5/8"-18UNF

R410a.R134a.R407C.R404a

9

FA-4M

12

54

S24

1/2

3/4"-16UNF

3.0MPa

R410a.R134a.R407C.R404a

10

FA-5M

16

68

S27

5/8

7/8"-14UNF

R410a.R134a.R407C.R404a

11

FA-6M

18

68

S36

3/4

1-1/16"-14UNF

R410a.R134a.R407C.R404a

12

FA-7M

22

87

S41

7/8

1-1/4"-12UNF

R410a.R134a.R407C.R404a

13

FA-3*2

6.35

45

S22

3/8

5/8"-18UNF

R410a.R134a.R407C.R404a

14

FA-4*3

9.52

45

S24

1/2

3/4"-16UNF

R410a.R134a.R407C.R404a

15

FA-5*4

12.7

54

S27

5/8

7/8"-14UNF

R410a.R134a.R407C.R404a

16

FA-6*5

15.88

68

S36

3/4

1-1/16"-14UNF

R410a.R134a.R407C.R404a

17

FA-7*6

19.05

68

S41

7/8

1-1/4"-12UNF

R410a.R134a.R407C.R404a
